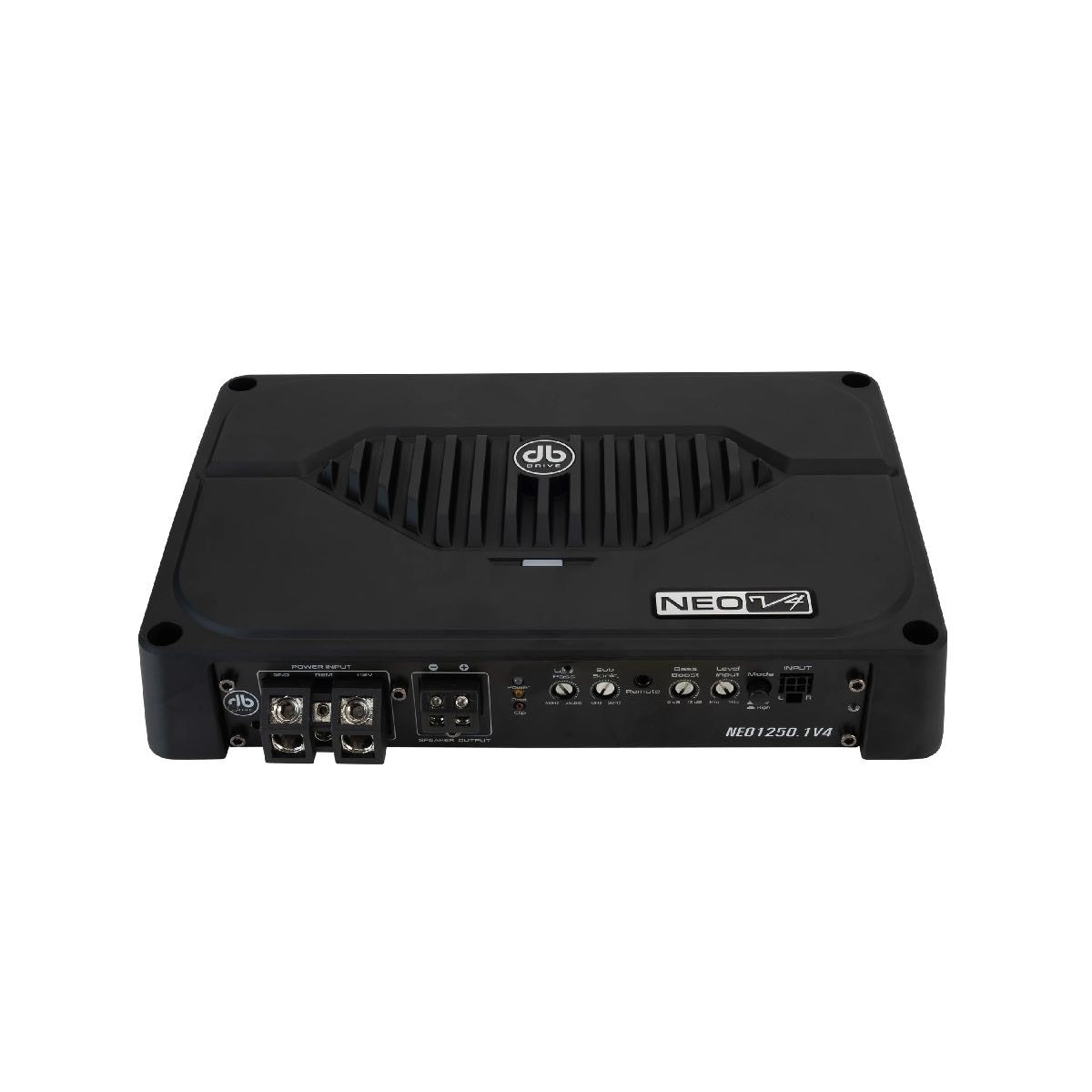

DB DRIVE MONO POWERSPORTS AMPLIFIER (NEO1250.1V4)

Mono full-range Class D technology

1 x 400 watts @ 4Ω

1 x 800 watts @ 2Ω

1 x 1250 watts @ 1Ω

1Ω mono load capability

Compatible with 1Ω, 2Ω, and 4Ω subwoofer loads

Marine-grade conformal-coated double-sided PC board

Splash-resistant control panel cover

Variable low-pass crossover

Variable subsonic filter

Variable bass boost

Remote bass level control included

Audio protection circuit

Signal Evaluation Status Indicator

Bandwidth (-3 dB): 18 Hz – 22 kHz

Signal-to-noise ratio: 112 dB @ 100 Hz

Input sensitivity: 250 mV – 8.0 V

Minimum load impedance: 1Ω mono

Low-pass filter range: 50 Hz – 5 kHz

Subsonic filter range: 15 Hz – 55 Hz

Bass boost: 0–12 dB @ 45 Hz

Length: 9.38 in. (238.25 mm)

Width: 6 in. (152.4 mm)

Height: 1.84 in. (46.74 mm)
