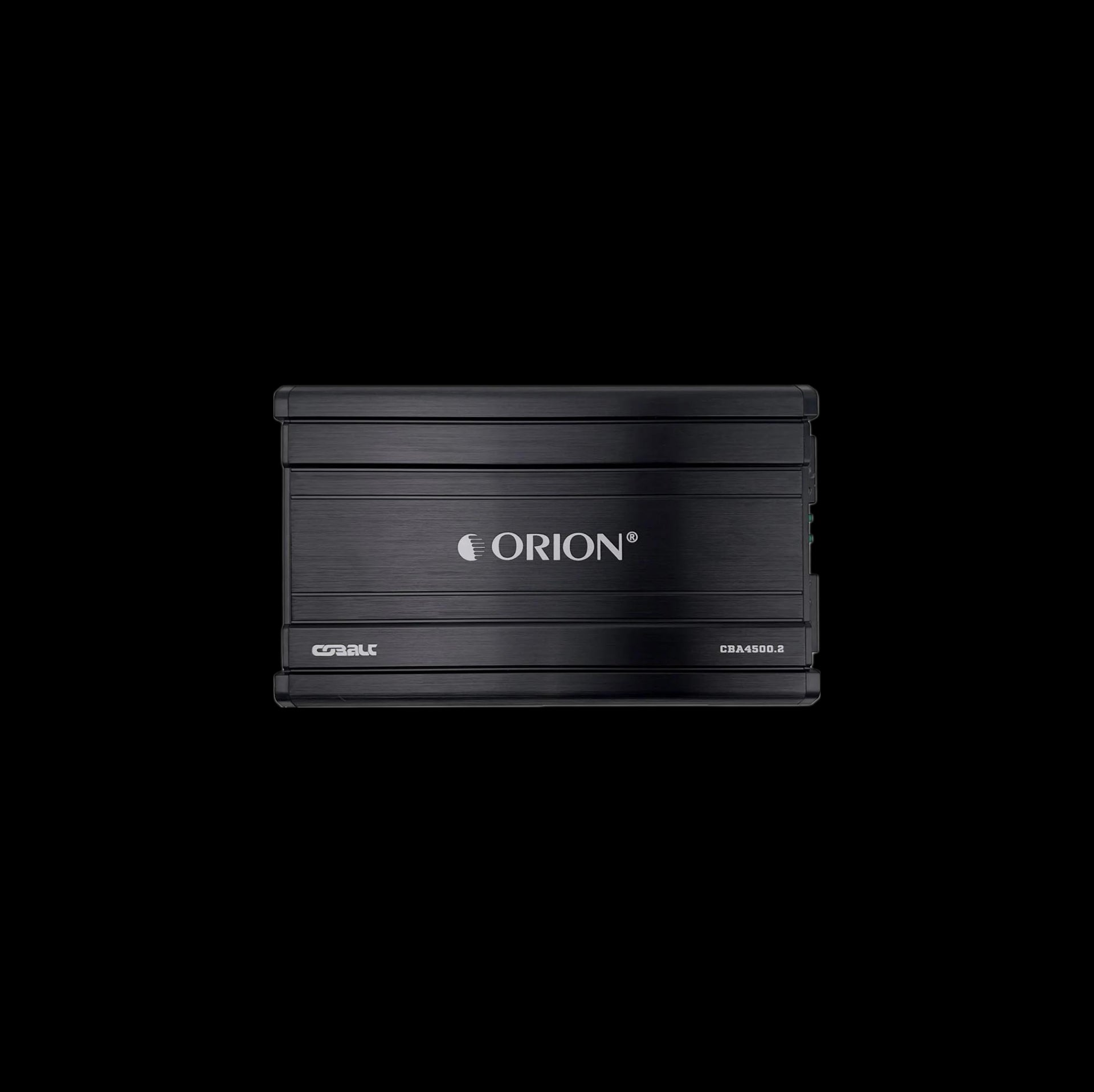

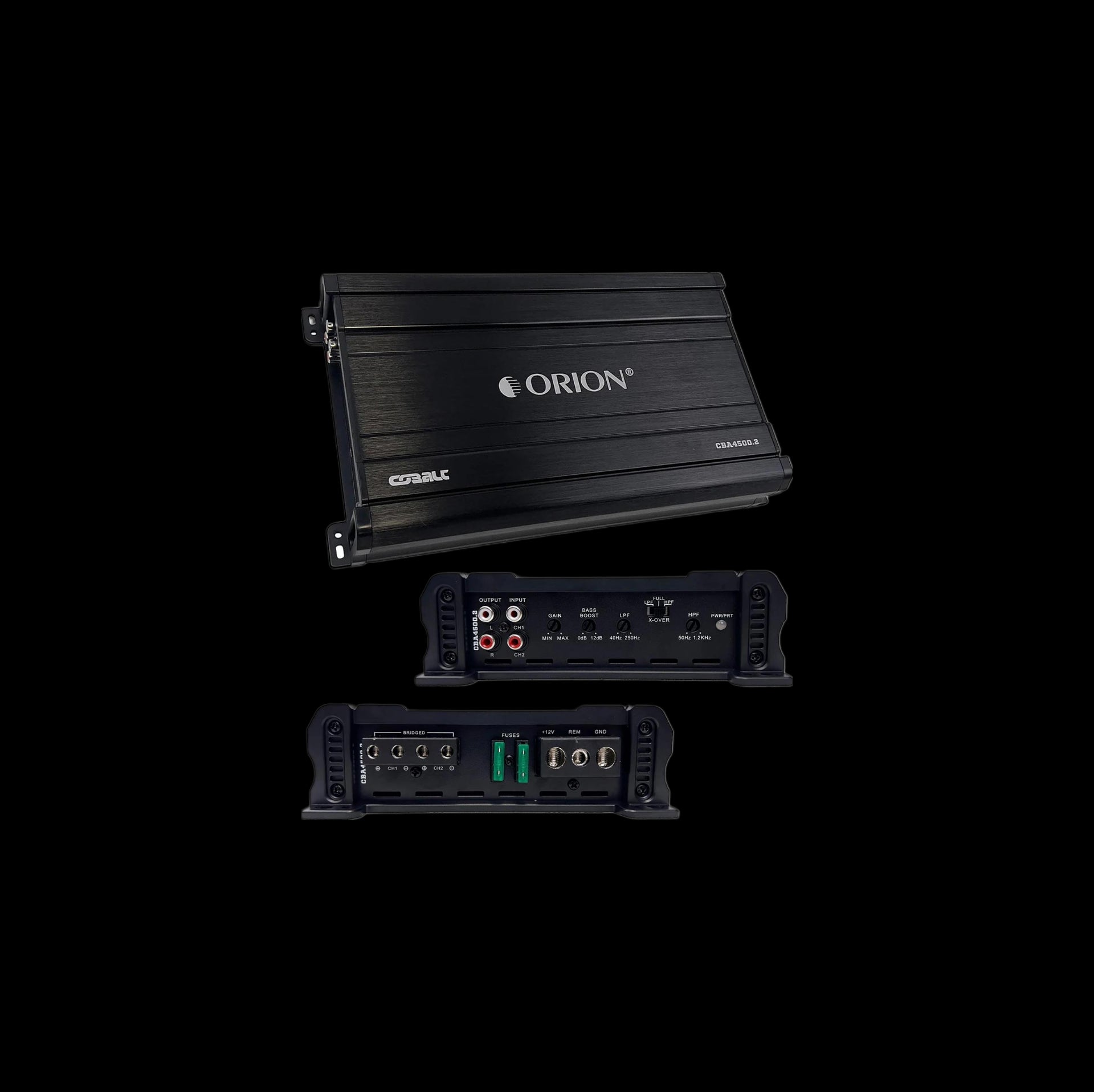

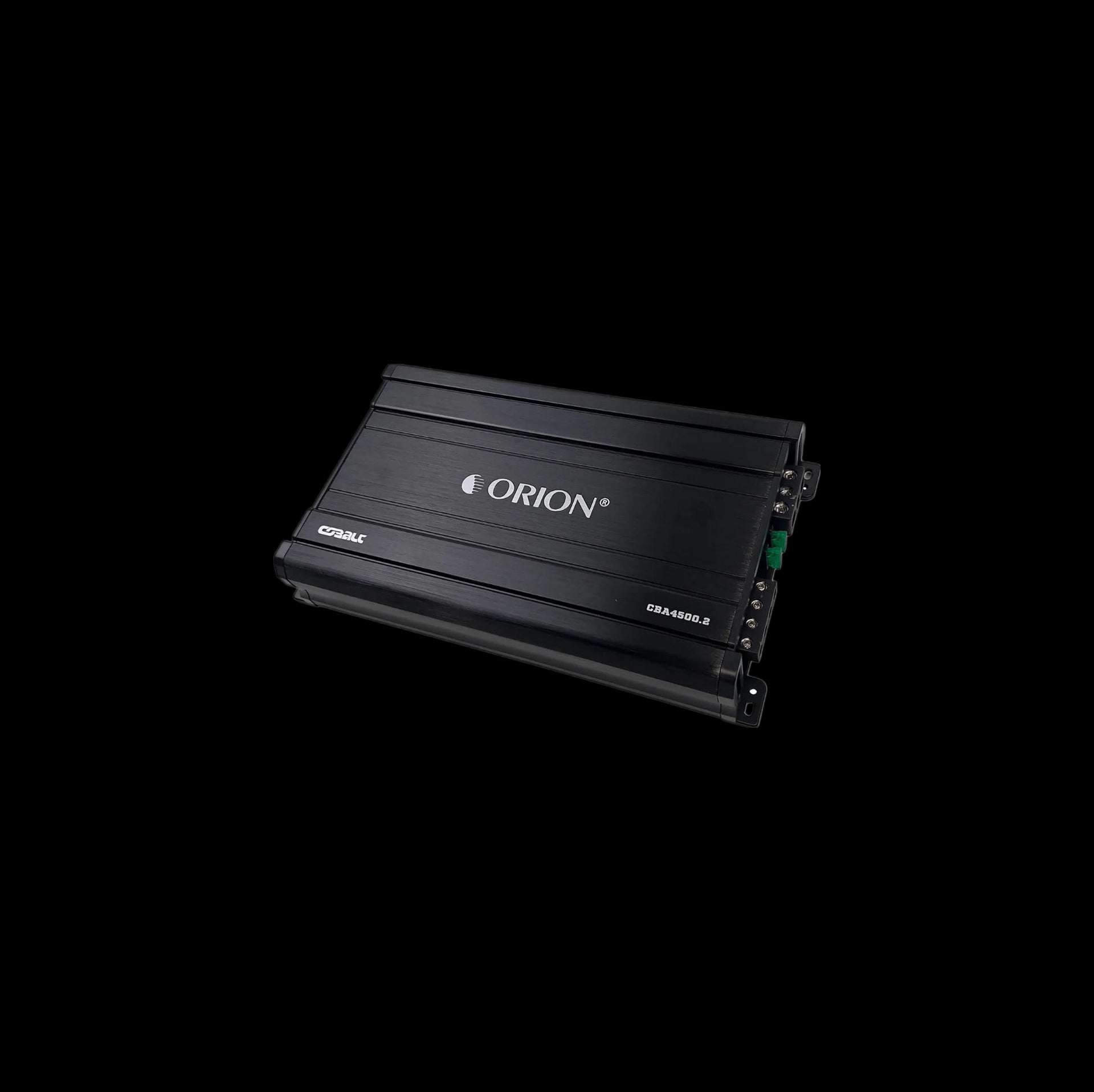

Orion Cobalt 4500 Watts MAX 2-Channel Class A/B Amplifier
4500 Watts Max
Class A/B
DIM (W X H X L) 7.1″ x 2.2″ x 12.6″
Fuses: 2 x 30A (ATC Fuses)
2 Ohm Stable
Frequency Response: 10Hz – 30kHz
High Pass Crossover Continuously variable (50-1.2kHz)
Low Pass Crossover Continuously variable (40-250Hz)
Supply Voltage: 9 – 16V
Input Impedance: 22kOhm – Signal to Noise Ratio: >90dB
Bass Boost: 0 – 12dB Variable
Variable Input Level Control: 0.2V – 6.0V

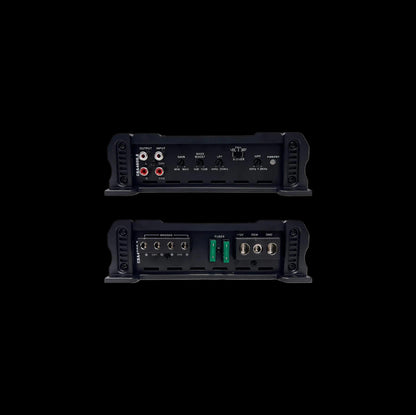

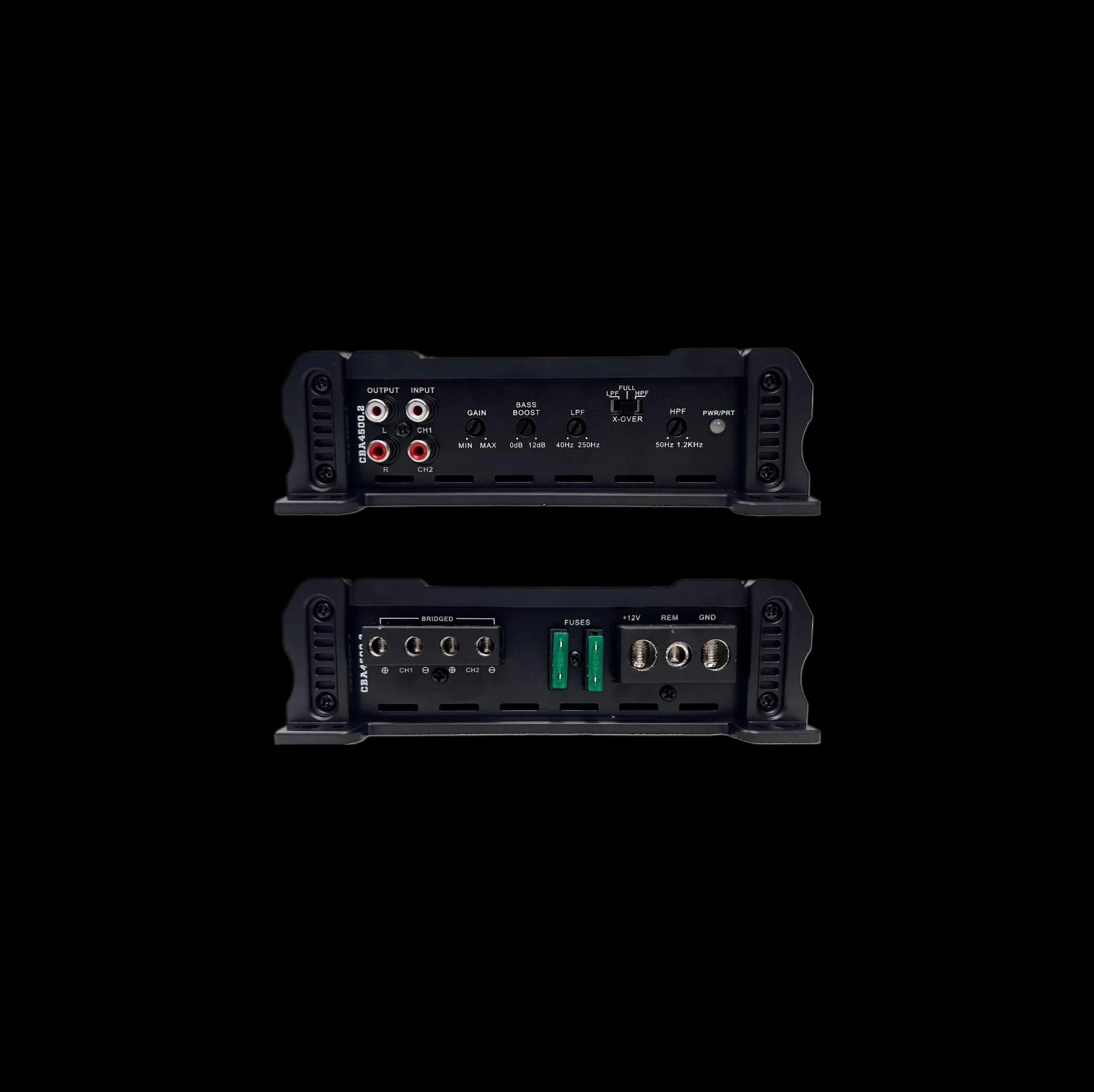

Wire Specifications:
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
2-Ohm Stable
RCA Out Throughput
12dB Octave Low-Pass Filter
Electronic Crossover Network
Bass Boost Circuit
Intelligent Power and Protection LED Indicator
Soft Turn-on/Turn-off Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
