2.0” (51mm) voice coil
Neodymium M-Ring magnet assembly
Optimized for high output SQ sound systems

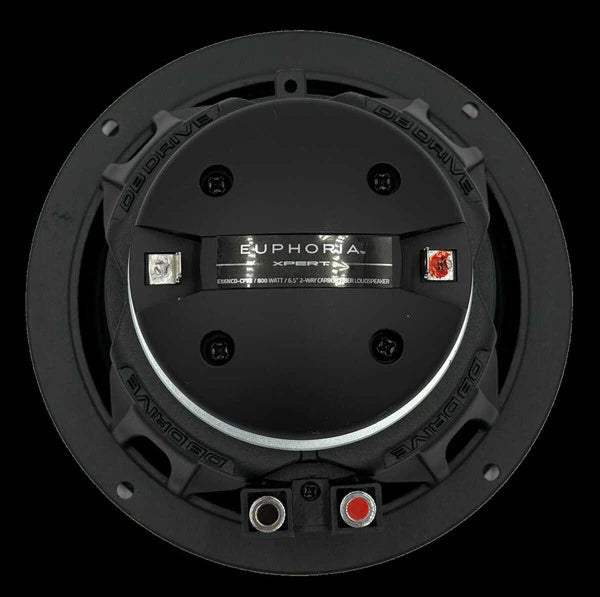

Rear mounted full sized compression driver
Weather-resistant carbon fiber cone with cloth surround
Custom aluminum basket with radial venting
1.4” (36mm) polyester tweeter diaphragm
Wide dispersion conical HF waveguide

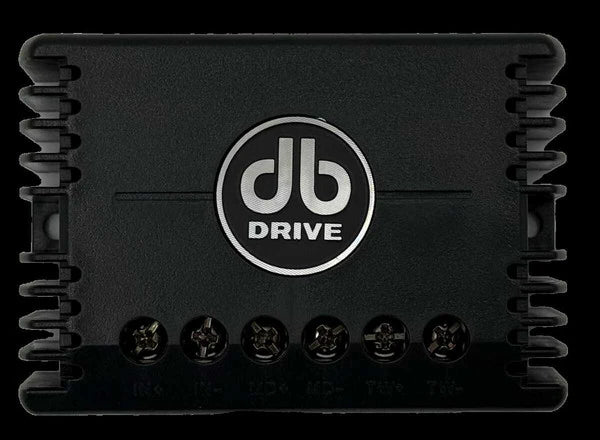

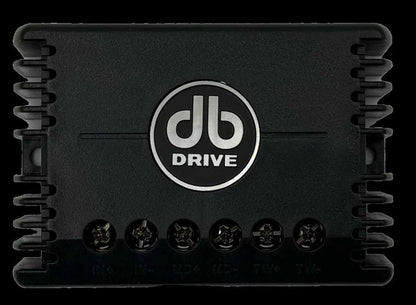

12dB passive crossover included

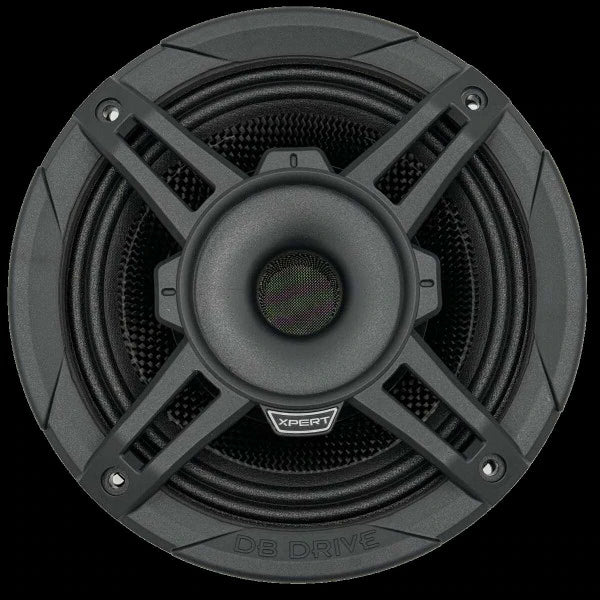

Protective grills included
Power handling: 400 watts
Dynamic wattage: 800 watts
Resonant frequency (Fs): 92.1 Hz
D.C. voice coil resistance (Re): 3Ω
Mechanical quality factor (Qms): 9.82
Electrical quality factor (Qes): 0.38
Total quality factor (Qts): 0.37
Compliance equivalent volume (Vas): 4.6 L
Mechanical compliance (Cms): 0.19 mm/N
Sensitivity (1w/1m): 106.1 dB
Impedance: 3Ω
Overall diameter: 6.85” / 174 mm
Cutout diameter: 5.49” / 139.43 mm
Mounting depth: 3.44” / 87.30 mm
