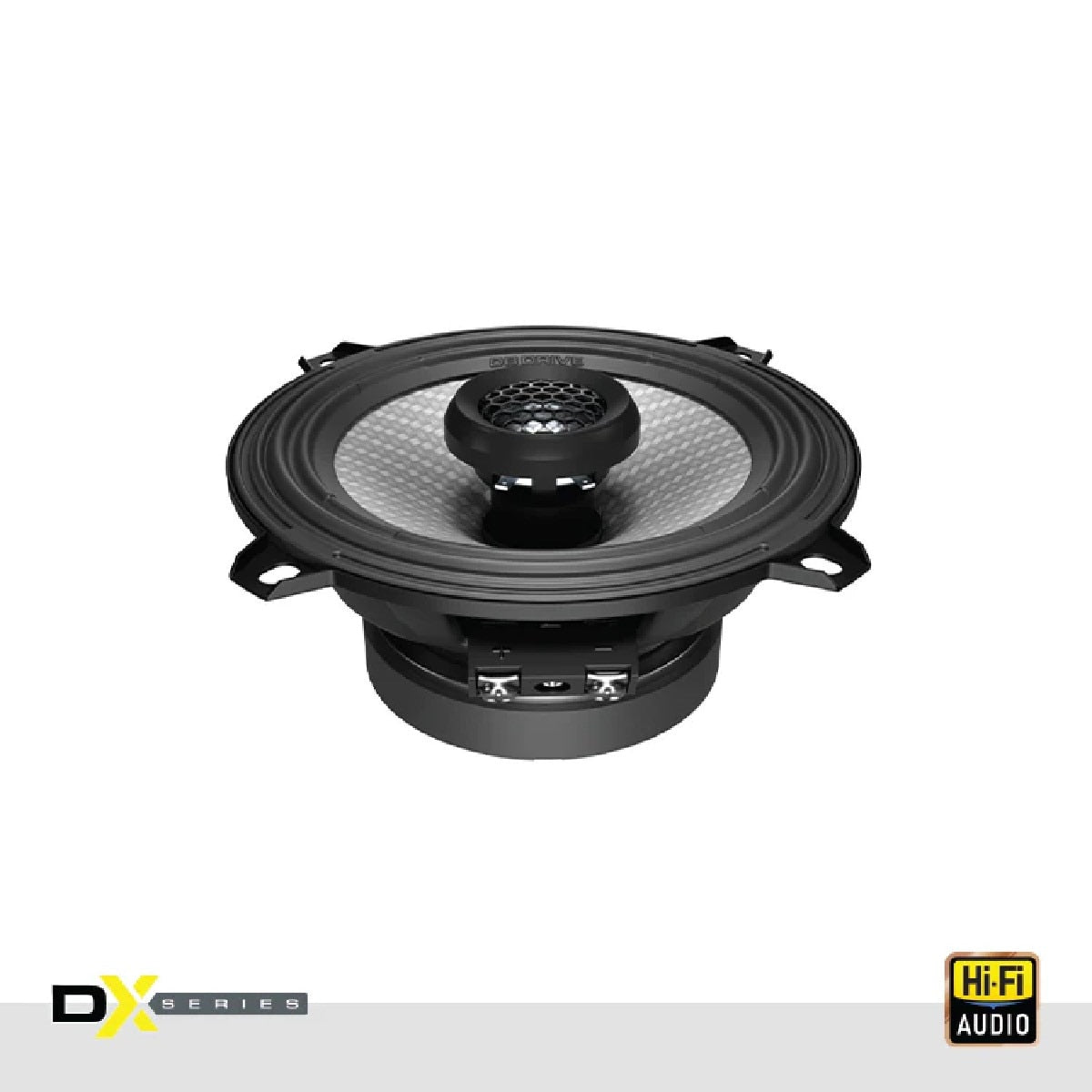

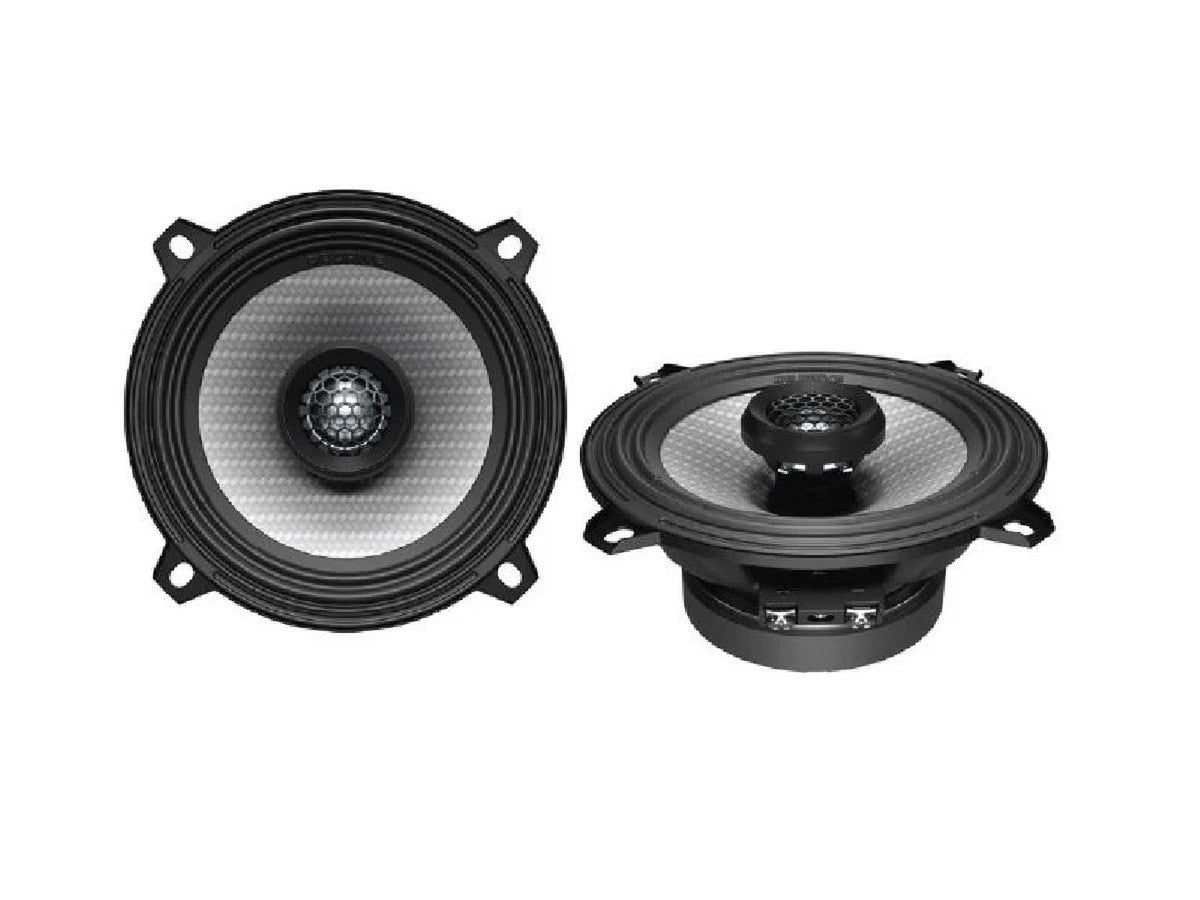

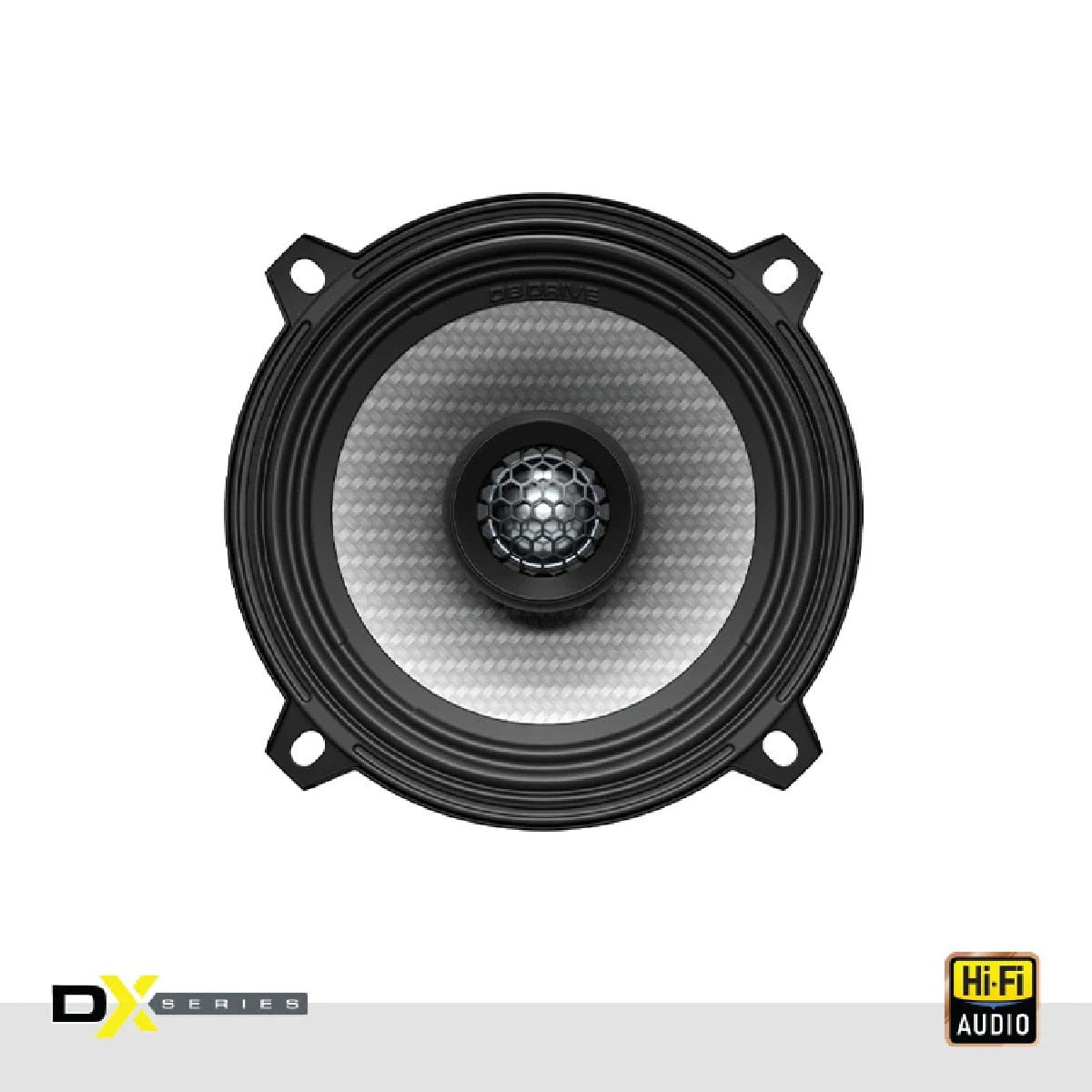

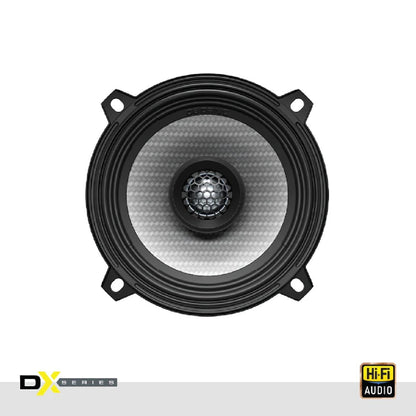

DB Drive DX-S525 5.25 Inch 170 Watt 2-Way Coaxial Speakers

These high-performance speakers feature a 0.75-inch aluminum dome tweeter and an injection-molded polypropylene composite midrange cone. The one-inch oversized voice coil provides enhanced thermal capacity for consistent audio delivery under high power loads. Integrated 12dB crossovers and linear gauss geometry motor plates ensure precise frequency transitions and reduced distortion. A stamp-cast steel basket housing provides structural stability while minimizing unwanted vibrations during operation.

Speaker Size	5.25"
Peak Power Handling	170 Watts
Nominal Power (RMS)	55 Watts
Impedance	4 Ohms
Frequency Response	75Hz - 20KHz
Sensitivity	89 dB
Tweeter Composition	0.75" Aluminum Dome
Midrange Composition	Injection Molded PP Composite
Voice Coil Diameter	1" Oversized
Magnet Type	Ferrite Oxide
Crossover Slope	12dB Onboard
Frame Construction	Stamp Cast Steel Basket
