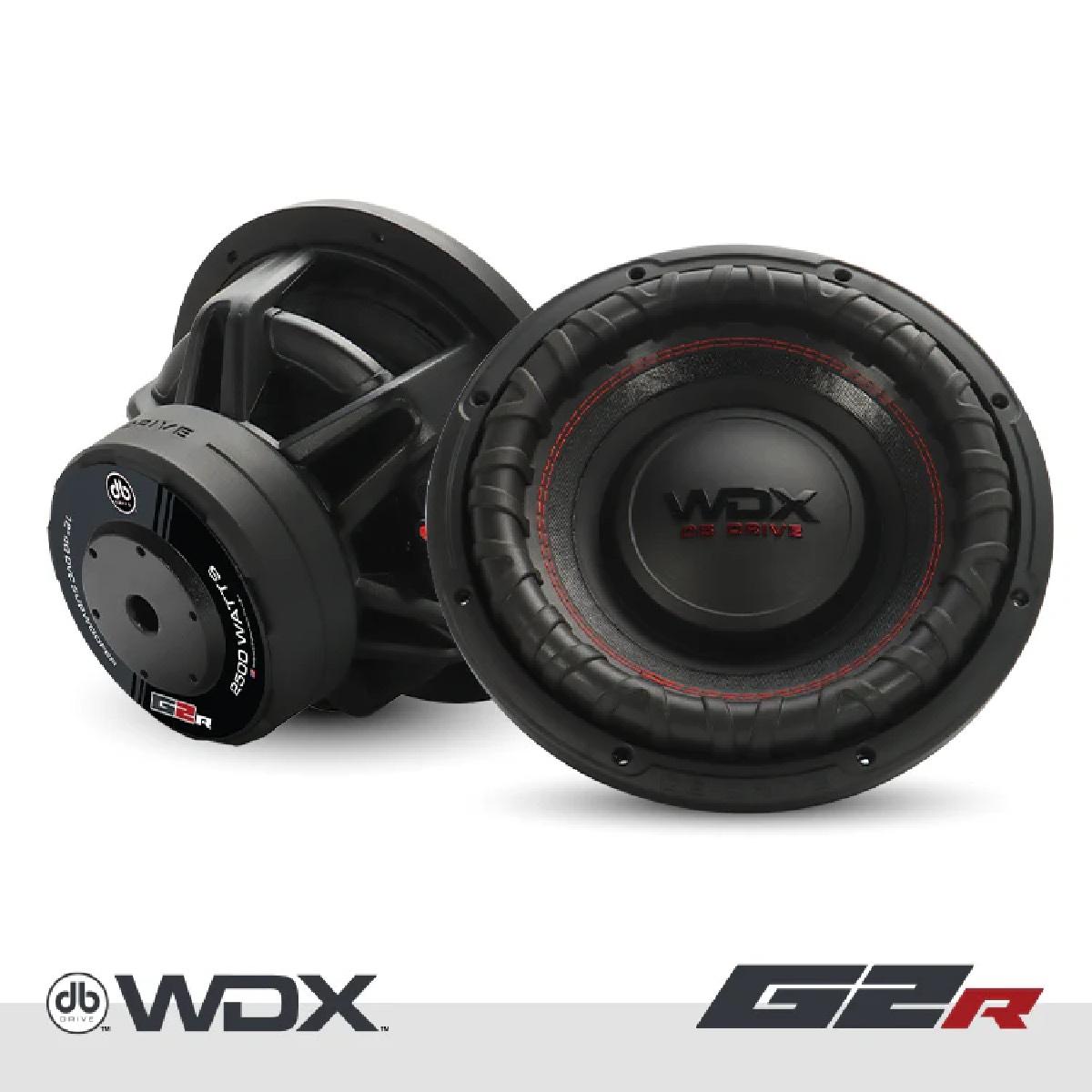

DB Drive WDX12G2R.2 12 Inch 2500W Dual 2 Ohm Subwoofer
DB Drive WDX12G2R.2 12 Inch 2500W Dual 2 Ohm Subwoofer
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

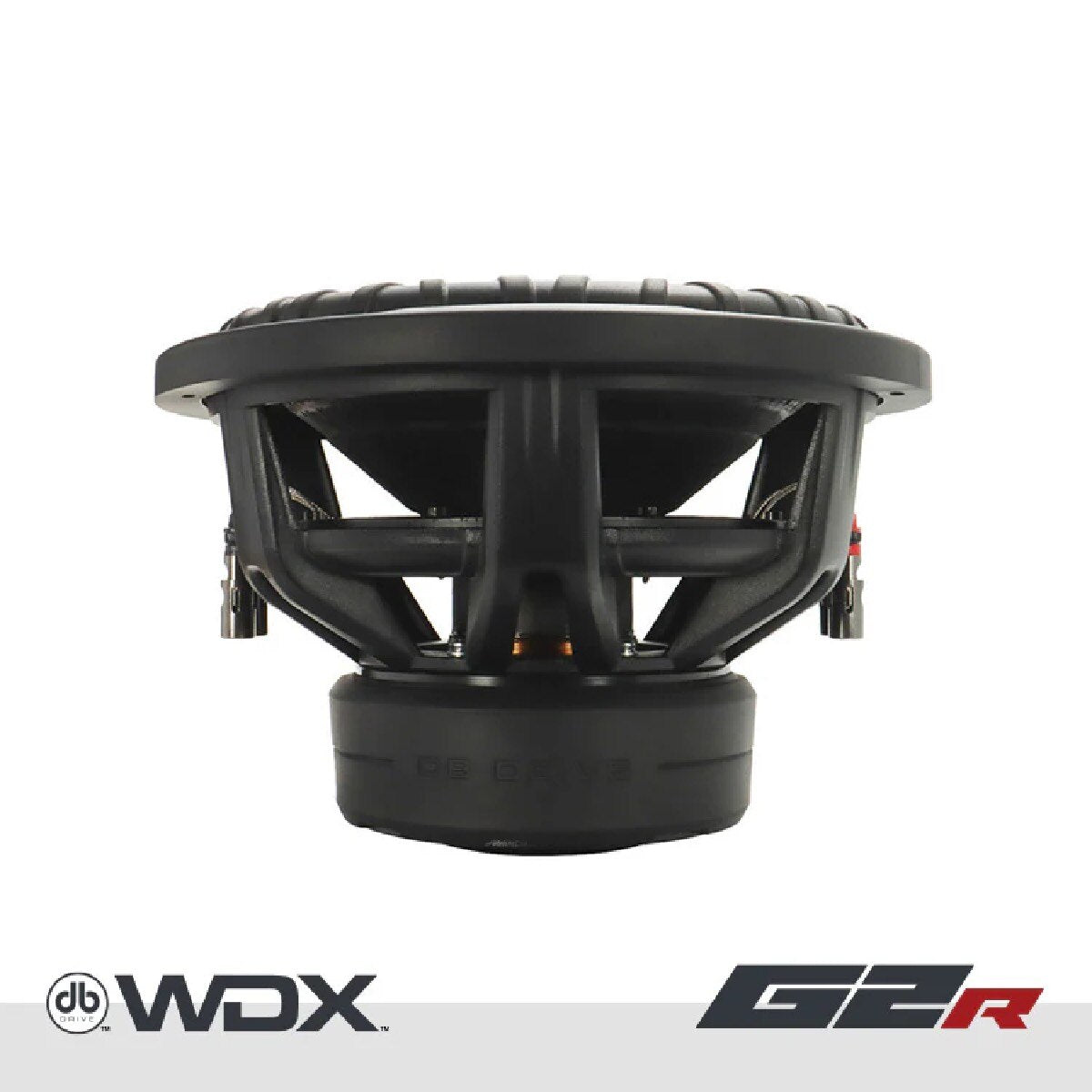

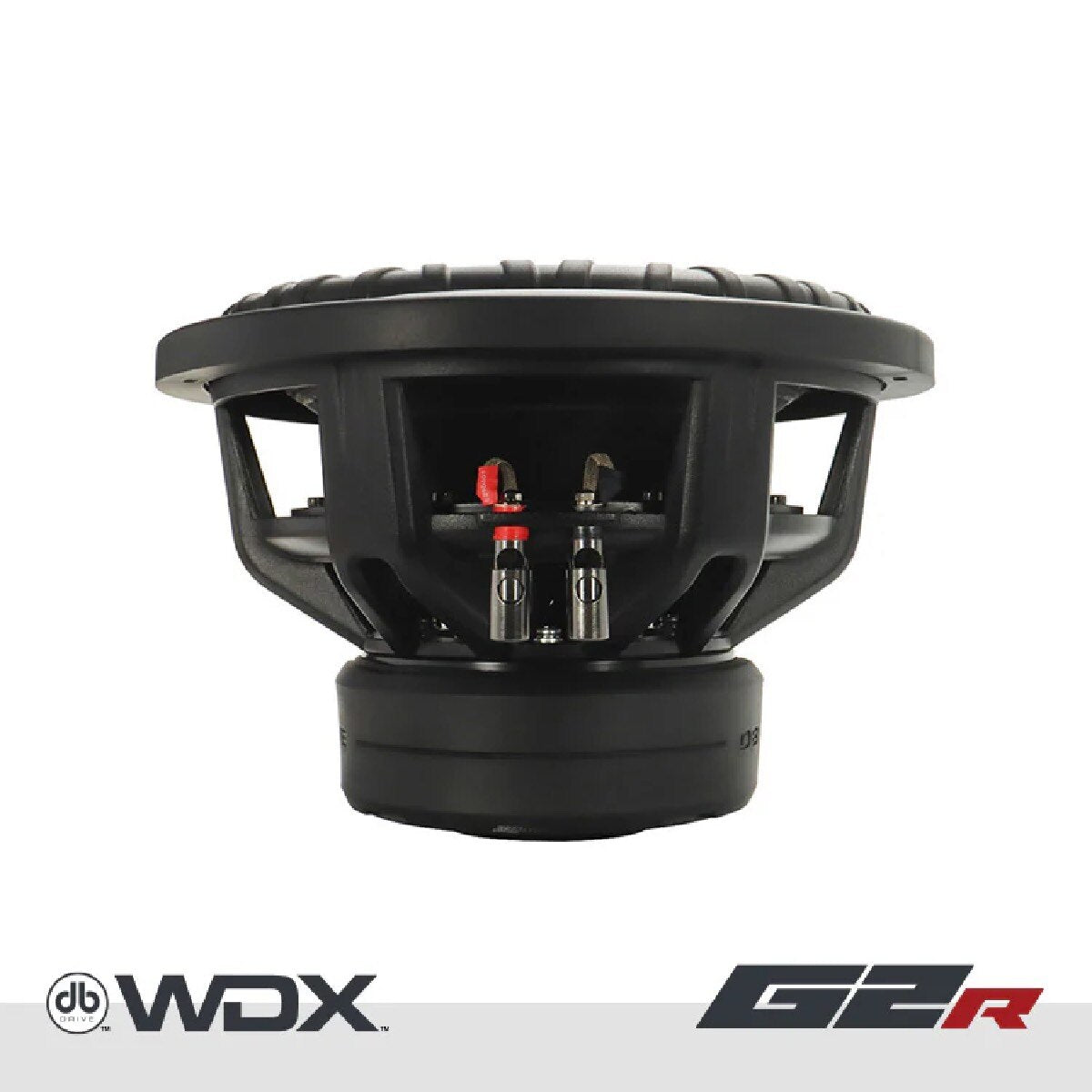

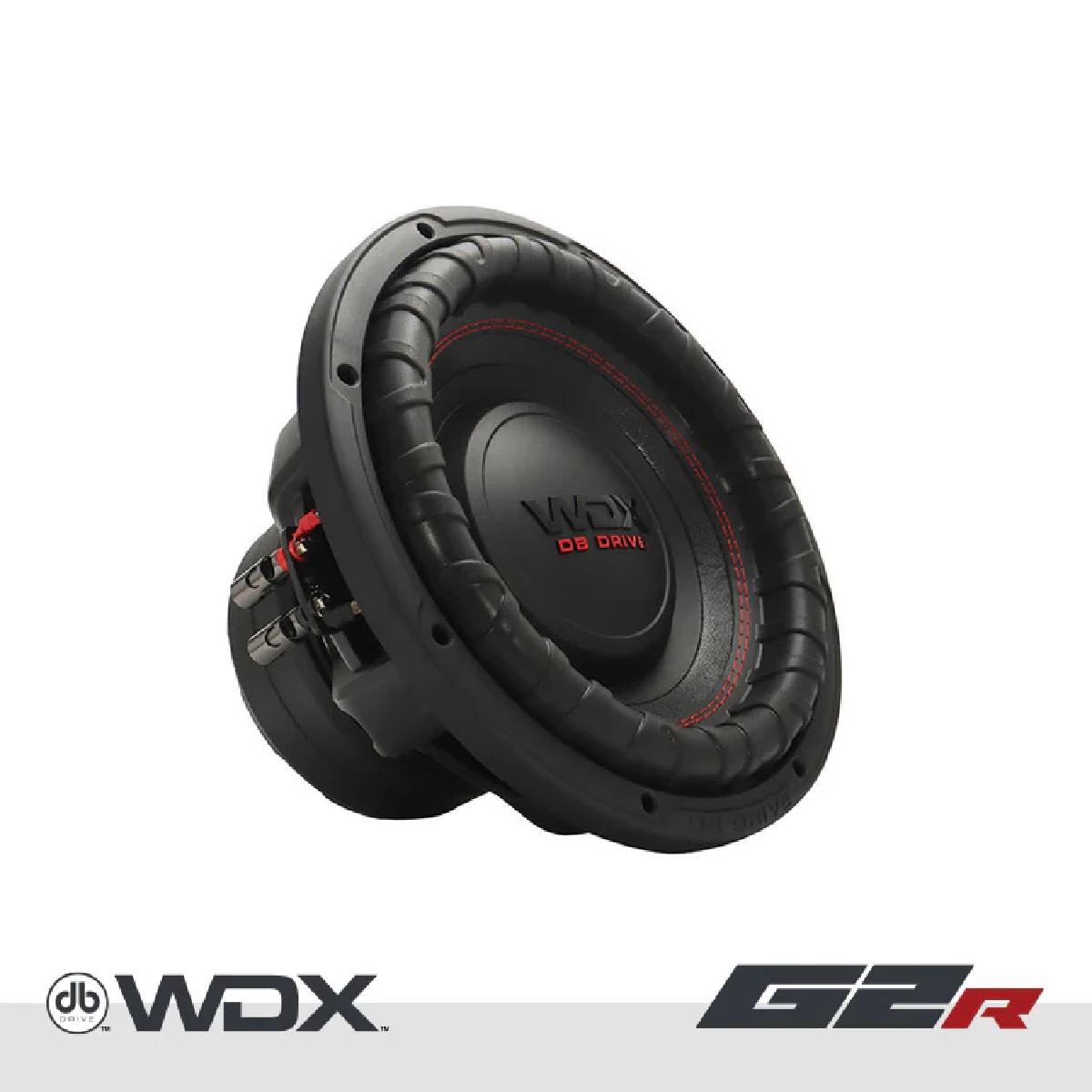

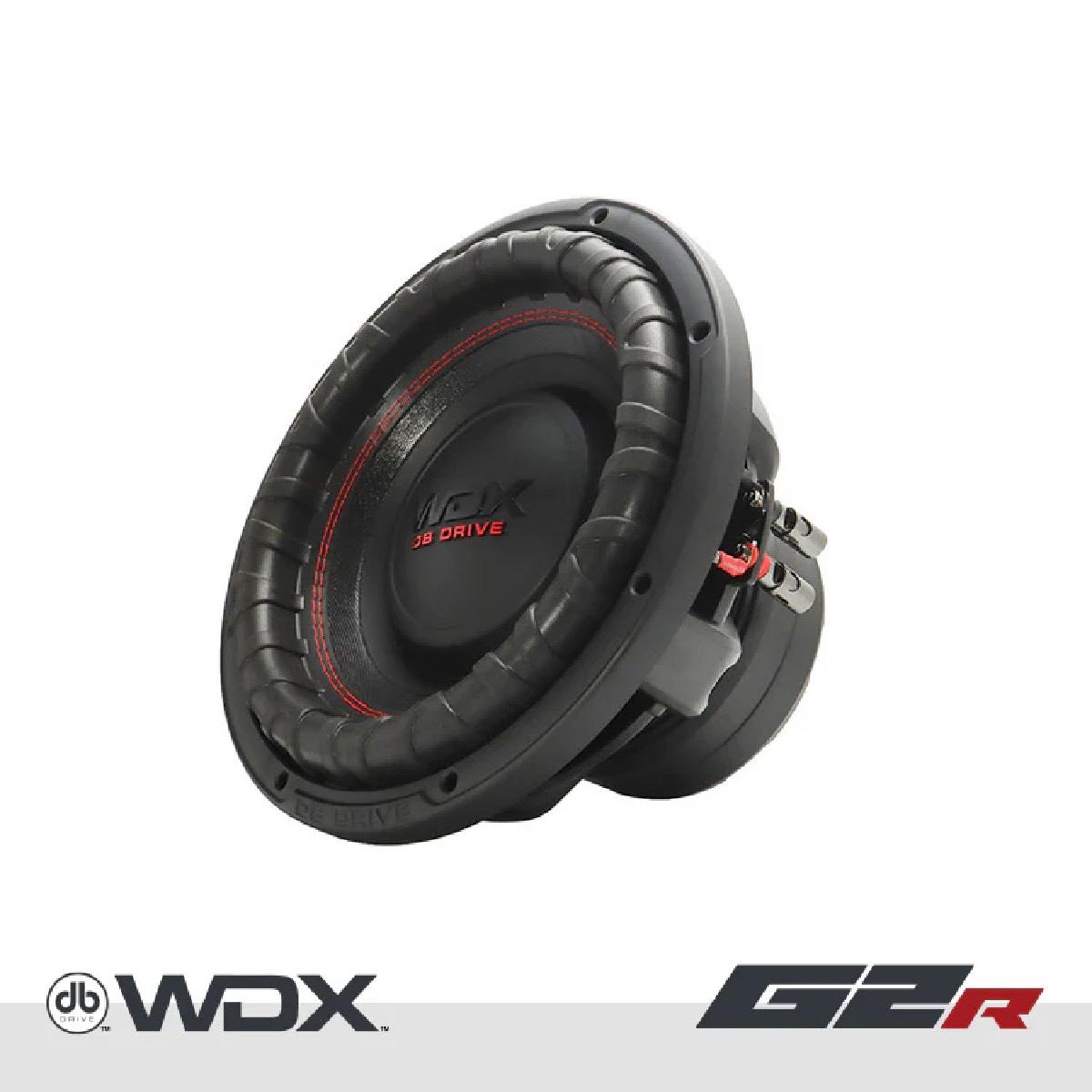

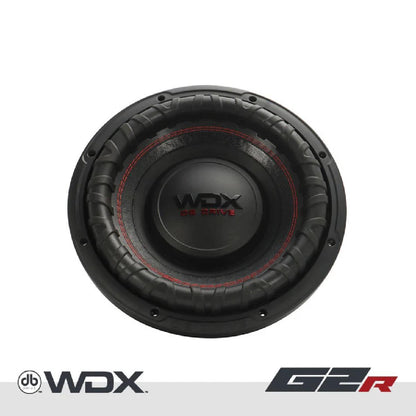

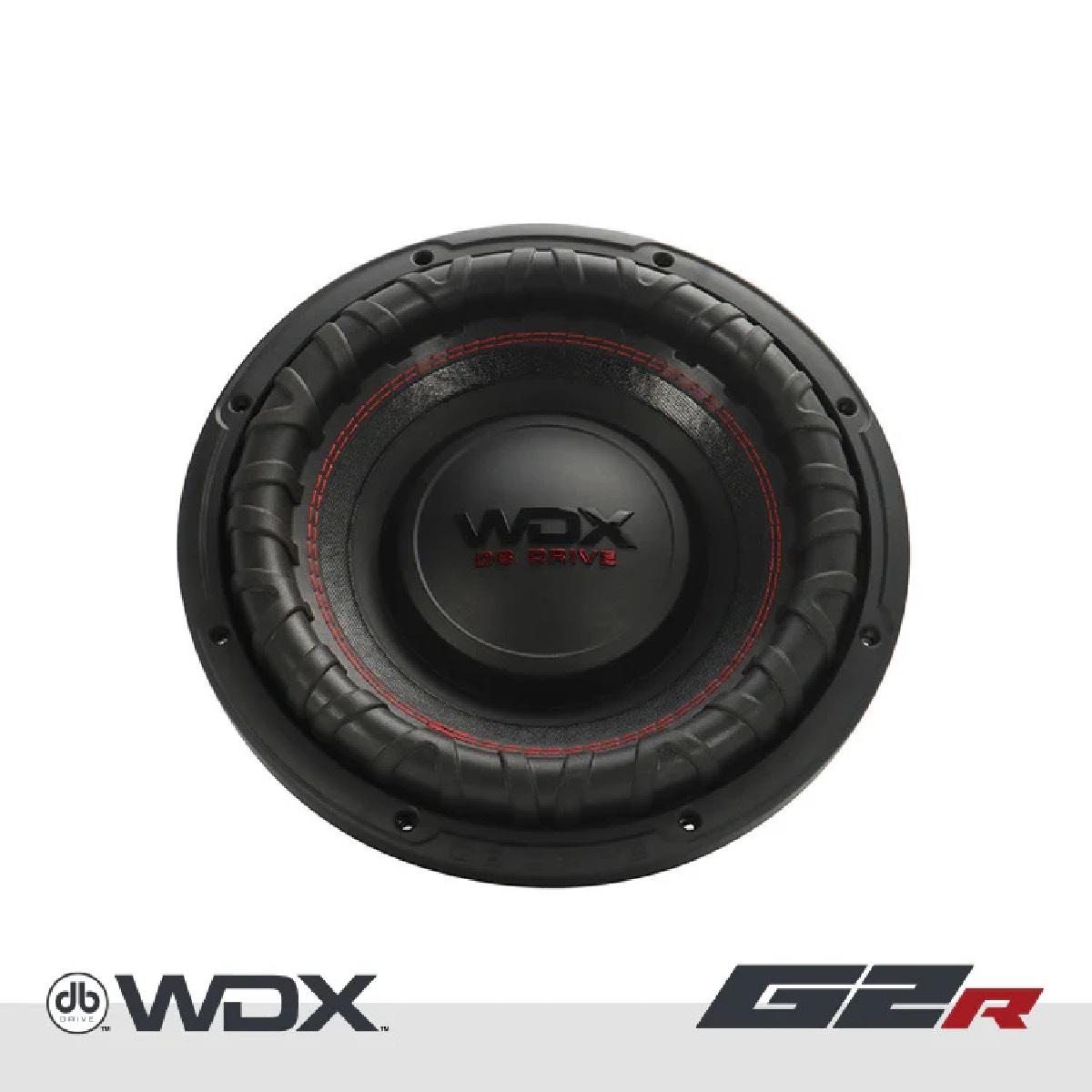

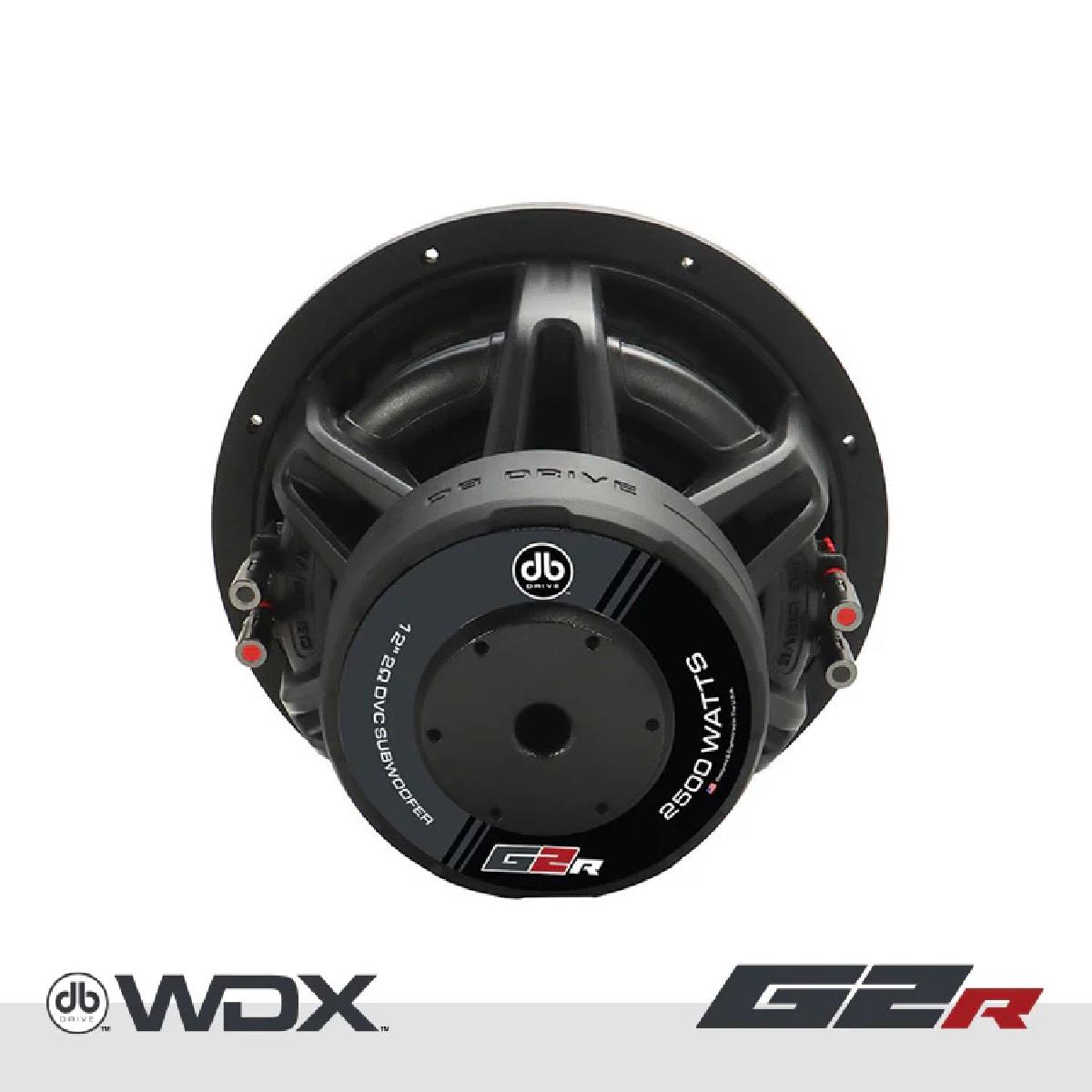

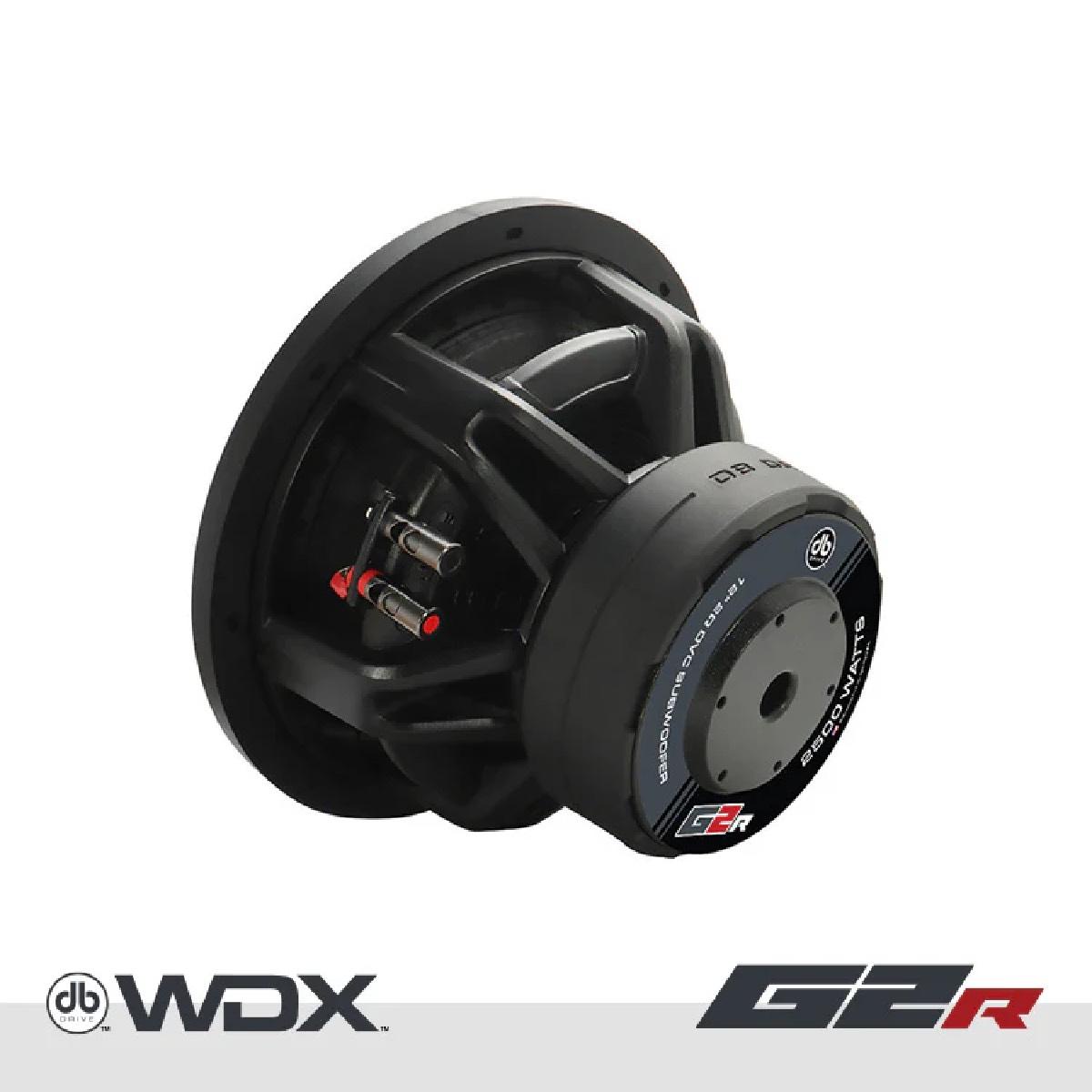

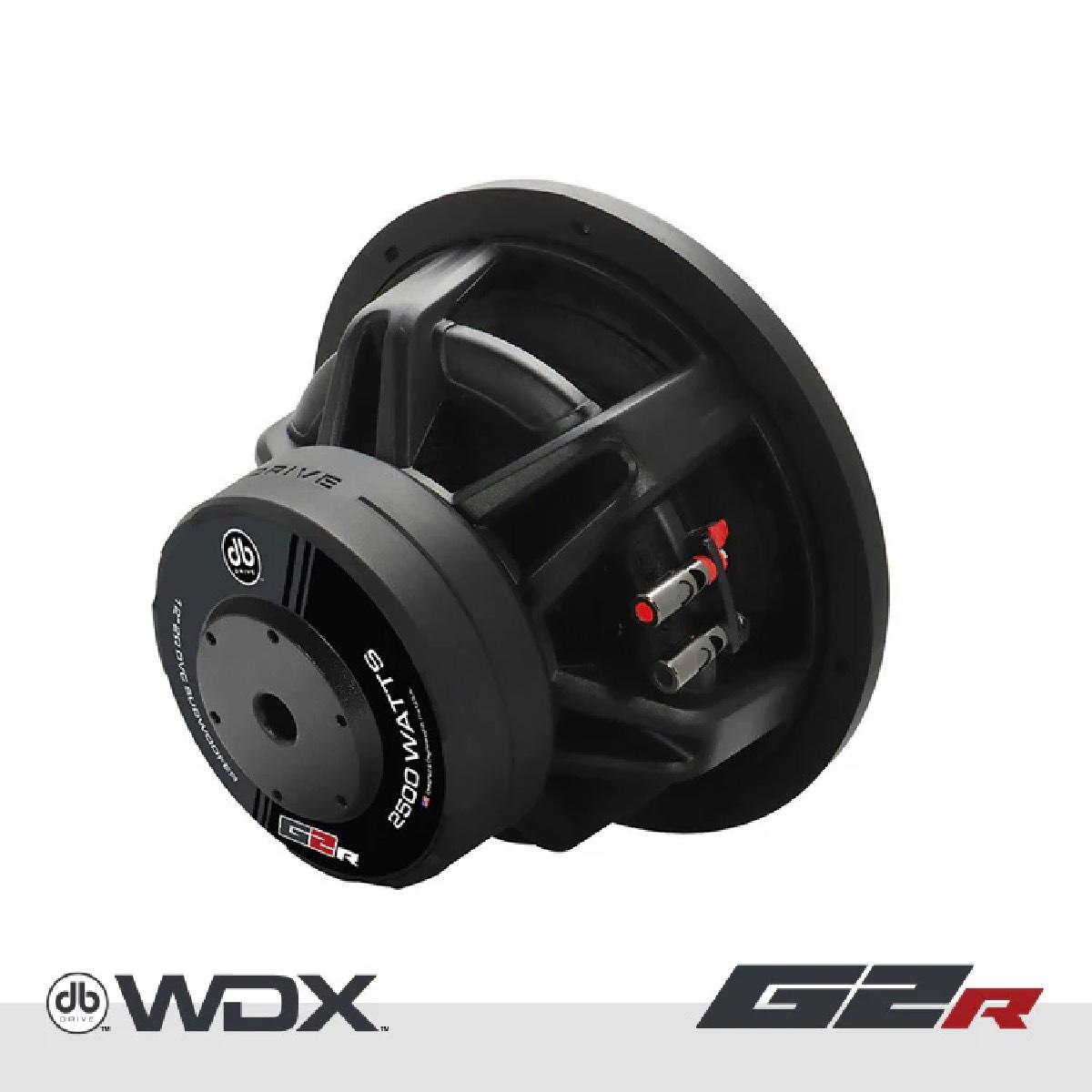

This high-performance 12-inch driver utilizes a 3.0-inch anodized aluminum high-temperature voice coil for superior thermal management. It features a non-pressed paper cone coupled with a double-stitched reinforced foam surround and dual poly-cotton dampeners. The architecture includes a custom-tooled die-cast aluminum vented basket and high-excursion motor with Y35 ferrite magnets. This unit is engineered to handle 2500 watts of dynamic power within a dual 2-ohm configuration.
View full details
| Voice Coil Diameter | 3.0 in |
| Dynamic Power Handling | 2500 W |
| Nominal Power Handling | 1250 W |
| Impedance | Dual 2 Ohm |
| Resonant Frequency (fs) | 33.597 Hz |
| Equivalent Air Volume (Vas) | 0.782 cu ft (estimated: true) |
| Mass of Diaphragm (Mms) | 0.853 lb (estimated: true) |
| Basket Material | Die-cast Aluminum |
| Magnet Type | Y35 Ferrite |
| Sound Pressure Level (SPL) | 80.1 dB |
