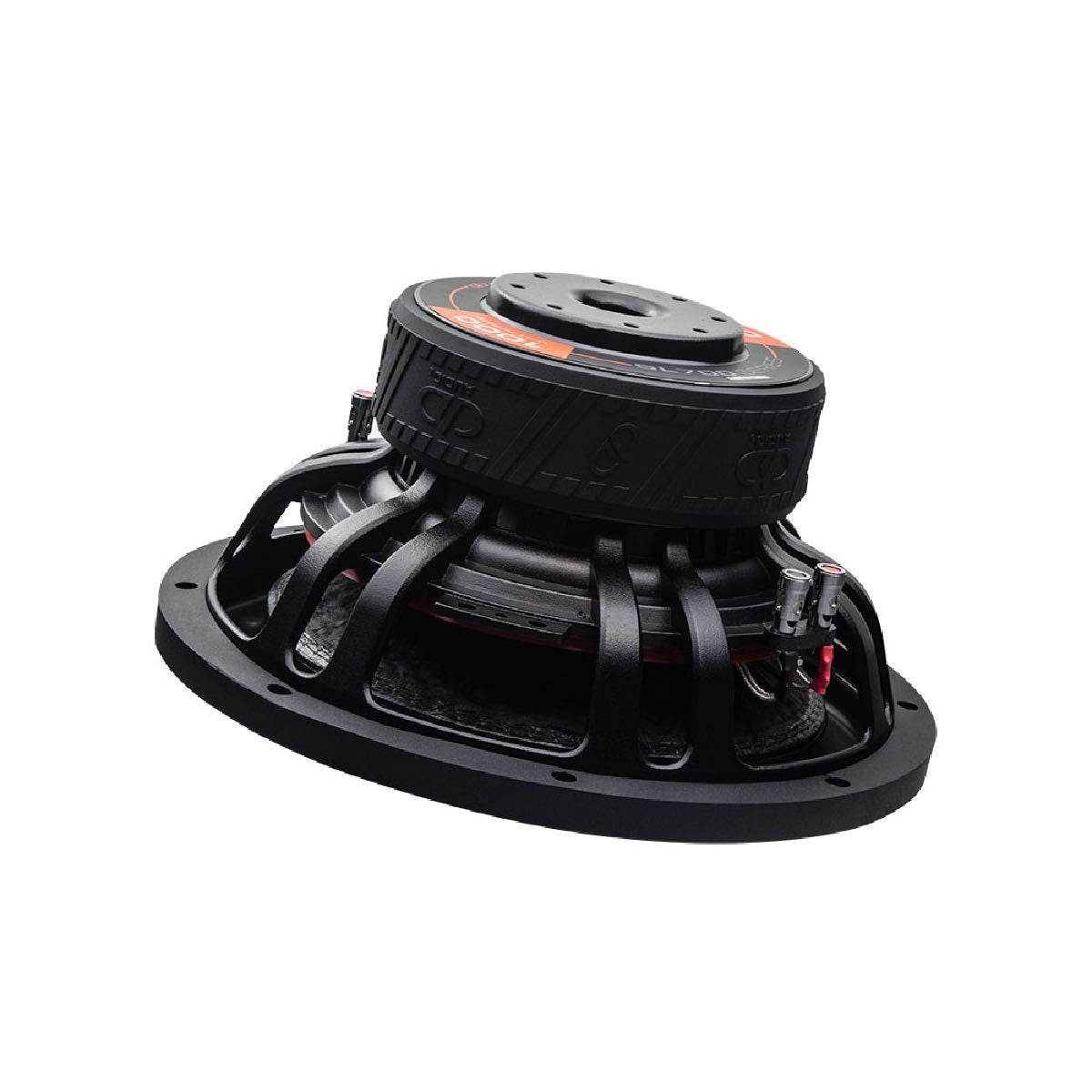

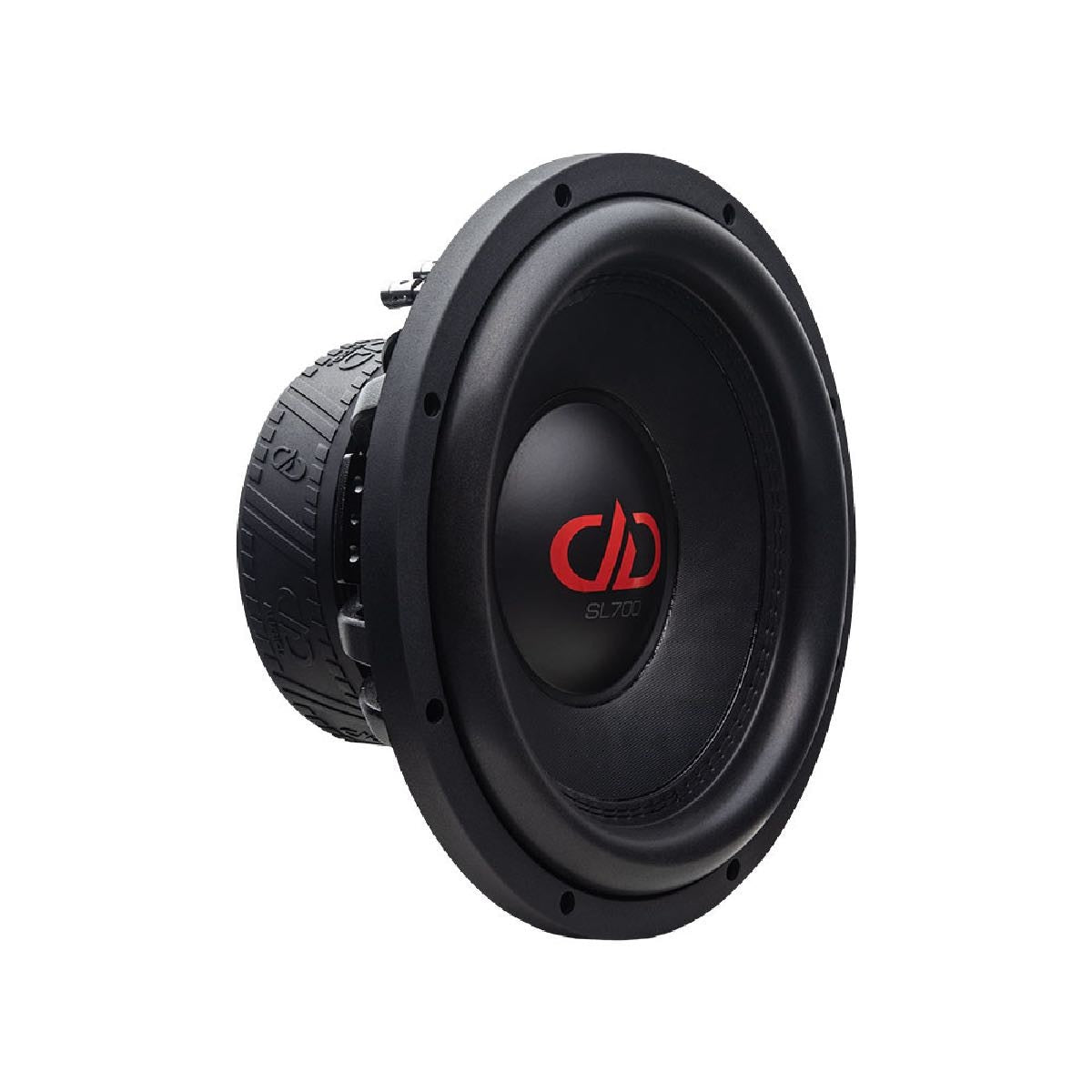

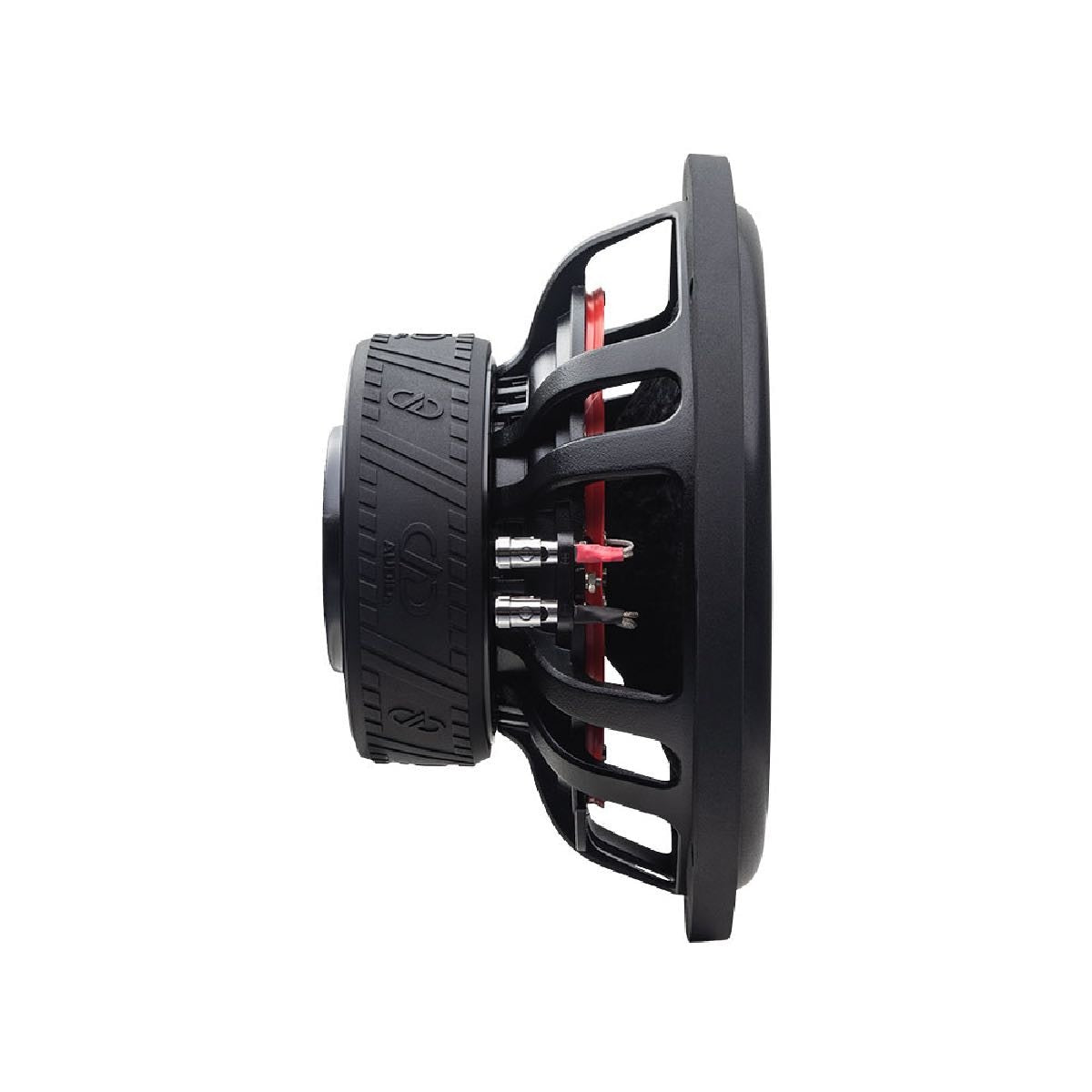

DD Audio 12-inch Shallow Subwoofer 3-inch Voice Coil 1000W Dual

Designed for compact installations, this 12-inch shallow subwoofer delivers 1000 watts RMS handling with a dual 2-ohm configuration for flexible amplifier matching. The 3-inch high-temperature copper voice coil, compact cast aluminum frame and 170mm (6.7 in) double-magnet motor provide thermal management and structural rigidity for sustained low-frequency output. Free-flow cooling, dual-layer spiders with integrated tinsel leads and a water-resistant treated cone increase power tolerance and long-term reliability in demanding environments. Recommended enclosure volumes are 0.7–1.5 cu ft (sealed) or 0.1–1.75 cu ft (ported) to achieve controlled deep bass in motorcycles, UTVs and compact audio systems.

Cone material	Water-resistant treated non-pressed cone
Surround	EROM surround
Frame	Compact cast aluminum frame
Voice coil	3.0 in high-temperature copper voice coil
Motor	170 mm (6.7 in) double-magnet motor with bumped back plate
Mounting depth	5.5 in mounting depth
Power handling	1000 Watts RMS
Impedance	Dual 2 Ω (dual 2-ohm) voice coils
Recommended enclosure	Sealed: 0.7–1.5 cu ft; Ported: 0.1–1.75 cu ft
