DS18 Class AB 1-Channel Monoblock 1.2K Watts 1 Ohm Amplifier GEN-X1200.1

Robust Power - DS18 GEN-X1200.1 delivers 1200 Watts of Full Range Class AB power for impressive car audio performance.

Durable Design - Lightweight yet durable, featuring a high-efficiency heat sink and top-notch internal technologies.

High-Quality Audio - Boasts a high-quality circuit board to ensure maximum power with a remarkable efficiency rate.

Stylish Illumination - Features a light-up DS18 logo and fully adjustable crossover filters for personalized audio tuning.

Easy Installation - Lower power consumption and high efficiency allow for installation without the need for a secondary or high-output alternator.

DS18 Class AB 1-Channel Monoblock 1.2K Watts 1 Ohm Amplifier GEN-X1200.1

This Listing includes:

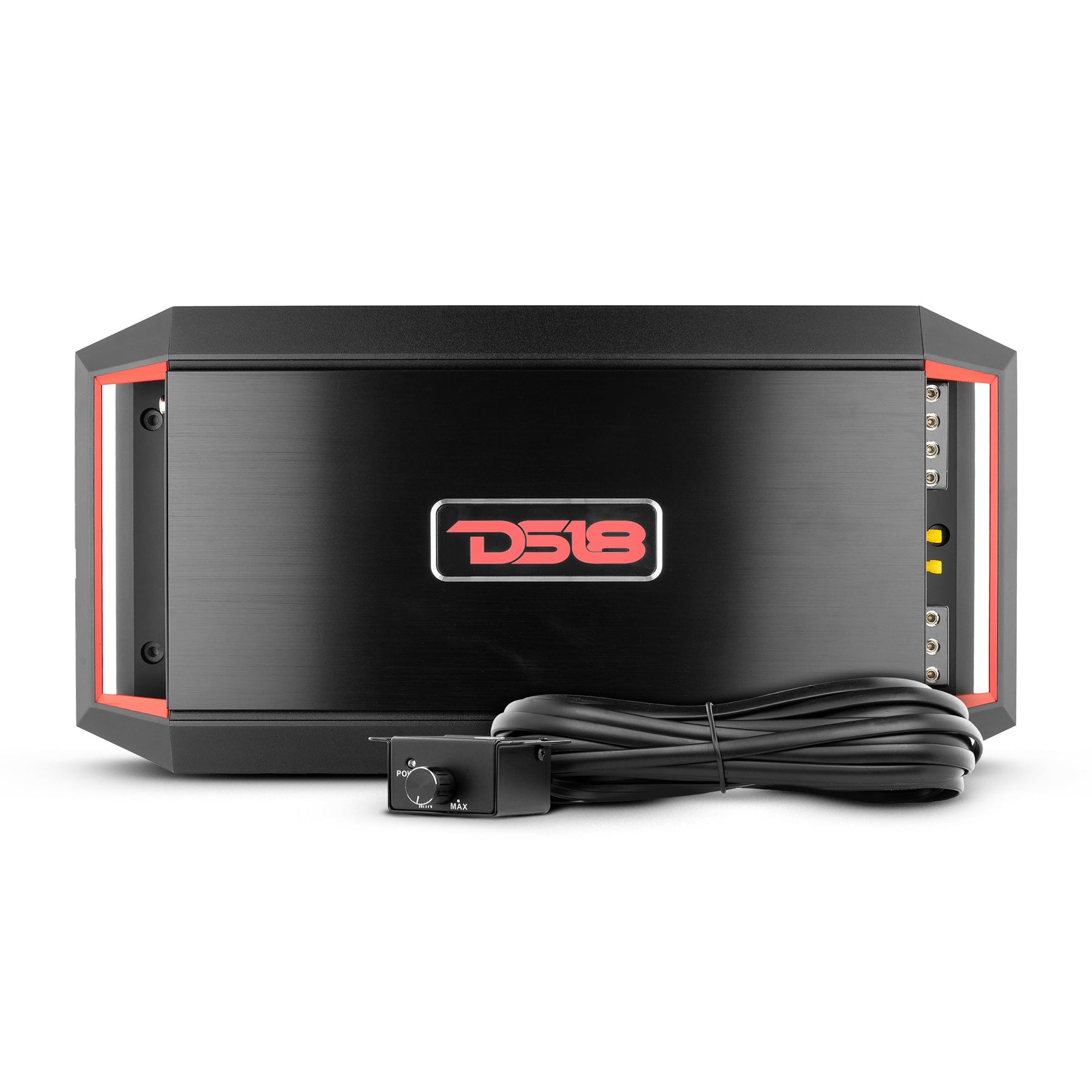

(1) Monoblock Class A/B 1200W Amplifier

(1) Bass Knob

(2) 20A Fuses ( Pre-Installed )

Elevate your car audio experience with the DS18 GEN-X1200.1, a Full Range Class AB 1 Channel Car Amplifier delivering a powerful 1200 Watts. Designed with durability and efficiency in mind, this amplifier features a lightweight yet robust construction with a high-efficiency heat sink. All internal components are manufactured by DS18, ensuring top-notch quality. The high-quality circuit board maximizes power output with an impressive efficiency rate. Enjoy a personalized audio experience with fully adjustable crossover filters and a light-up DS18 logo for added style. With lower power consumption and high efficiency, this amplifier can be seamlessly installed without the need for a secondary or high-output alternator. Upgrade your car audio system with the DS18 GEN-X1200.1 for unparalleled performance.

Features :

Full Range Class AB 1 Channel Car Amplifier

Power Output: 1200 Watts

Lightweight and Durable Design

High-Efficiency Heat Sink

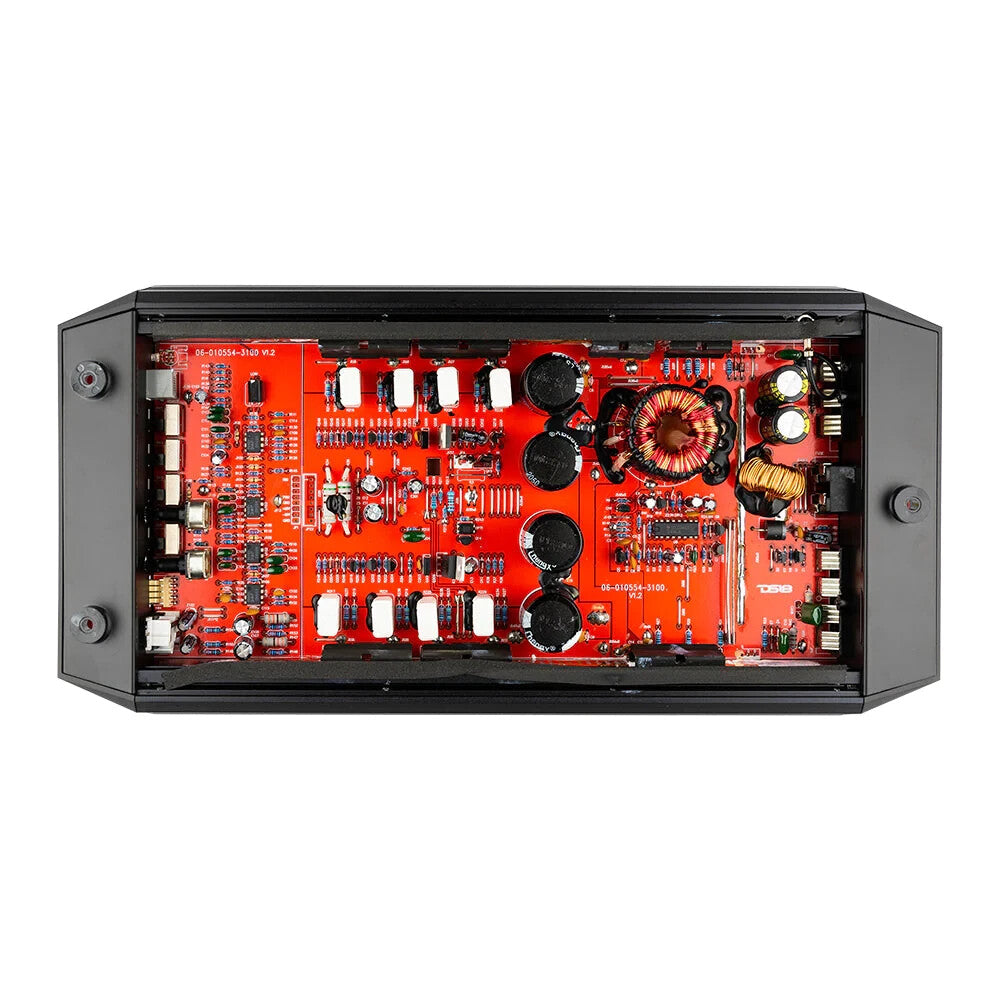

High-Quality Circuit Board

Light-Up DS18 Logo

Adjustable Crossover Filters

Easy Installation with Lower Power Consumption

Technical Specifications:

Number of Channels: 1

Frequency Response: 20Hz - 20KHz

MAX Power: 1200W

RMS Power (14.4V) Per Channel: 1 x 310W (1 Ohm), 1 x 220W (2 Ohm), 1 x 130W (4 Ohm)

Speaker Impedance Range: 1-4 Ohm

Input Sensitivity: 0.2V-+6V

Crossover Network: Bass Boost (0dB / +6dB / +12dB), Phase (0~180), Low Pass Filter (50Hz - 500Hz), High Pass Filter (50Hz - 500Hz)

Fuse Size: 2 x 20A

Signal-to-Noise Ratio: 98dB

THD: 0.08%

THO Distortion: 0.08%

Input Impedance: 10K

Remote Gain Control: 0.2V~+6V

Dimensions:

Length: 15 inches

Width: 2.5 inches

Height: 7.5 inches
