Stinger HORIZON12 12.8-inch Infotainment Display Kit for Jeep Wrangler JL

The HORIZON12 12.8-inch, 1920×1080 capacitive display provides a high-resolution, optically bonded touch surface with anti-glare and anti-fingerprint protection. System supports wireless and wired Apple CarPlay and Android Auto, Bluetooth 5.1, HDMI input, three USB ports, microSD navigation support and up to four camera inputs for configurable safety views. Audio subsystem offers 8-channel RCA outputs (4.5Vrms), Toslink optical output, 15-band graphic EQ and built-in high- and low-pass crossovers for integration with aftermarket amplifiers. Jeep-specific plug-and-play installation kit includes factory-matched mounting panels, CH1A-SRK RadioPRO harness, dash-mount USB/HDMI and adapters to retain factory features.

Materials	Optically bonded capacitive glass display; anti-glare/anti-fingerprint film; OEM-matched ABS flush-mount dash plastics

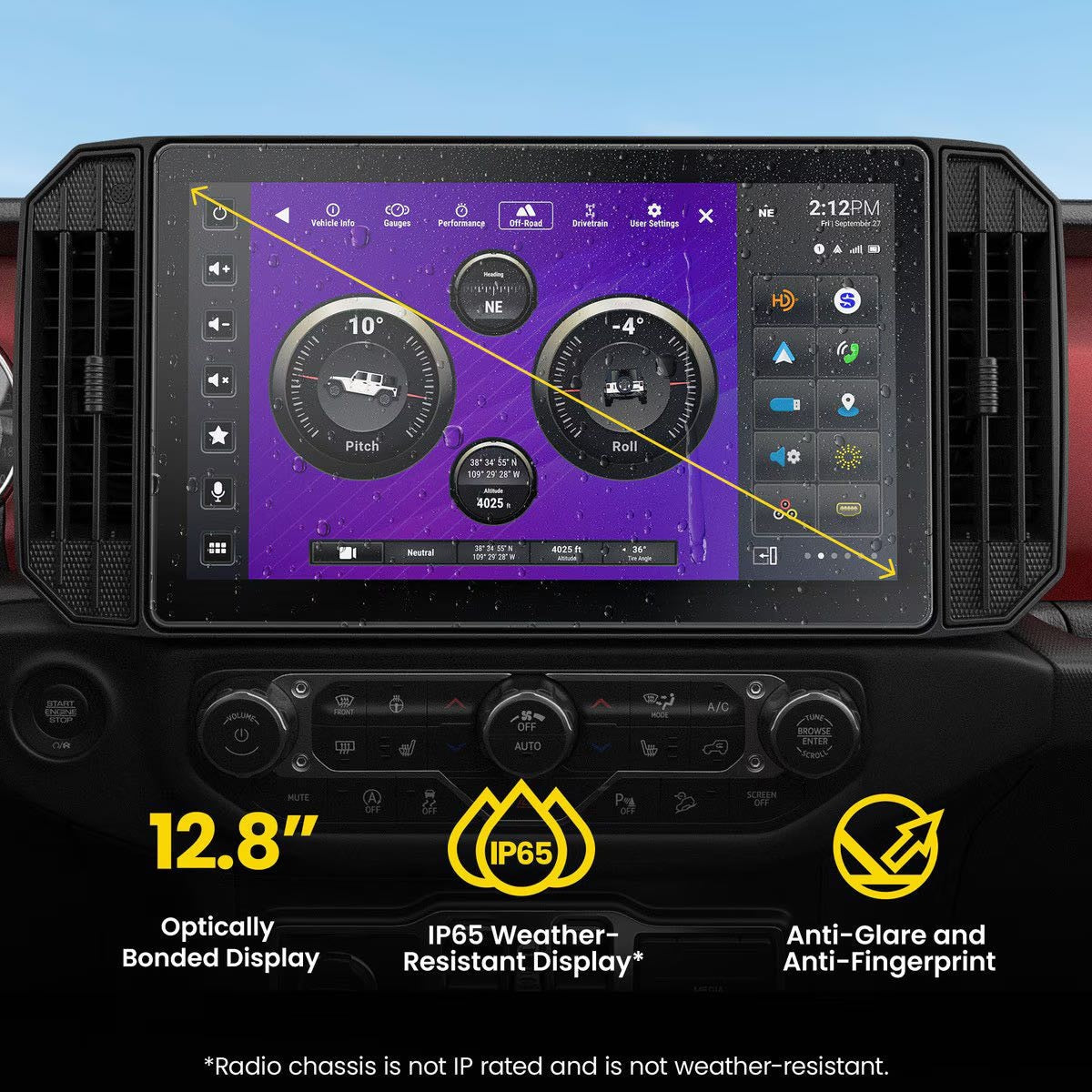

Display	12.8 in diagonal, Full HD 1920×1080 resolution, 16:9 aspect ratio, 16.7M colors
Touchscreen & Rating	Capacitive multi-touch panel; touchscreen rated IP65 (radio chassis not IP-rated)
Audio	8-channel RCA outputs (4.5Vrms) with subwoofer control; Toslink optical output; 15-band graphic EQ; built-in HPF/LPF crossovers

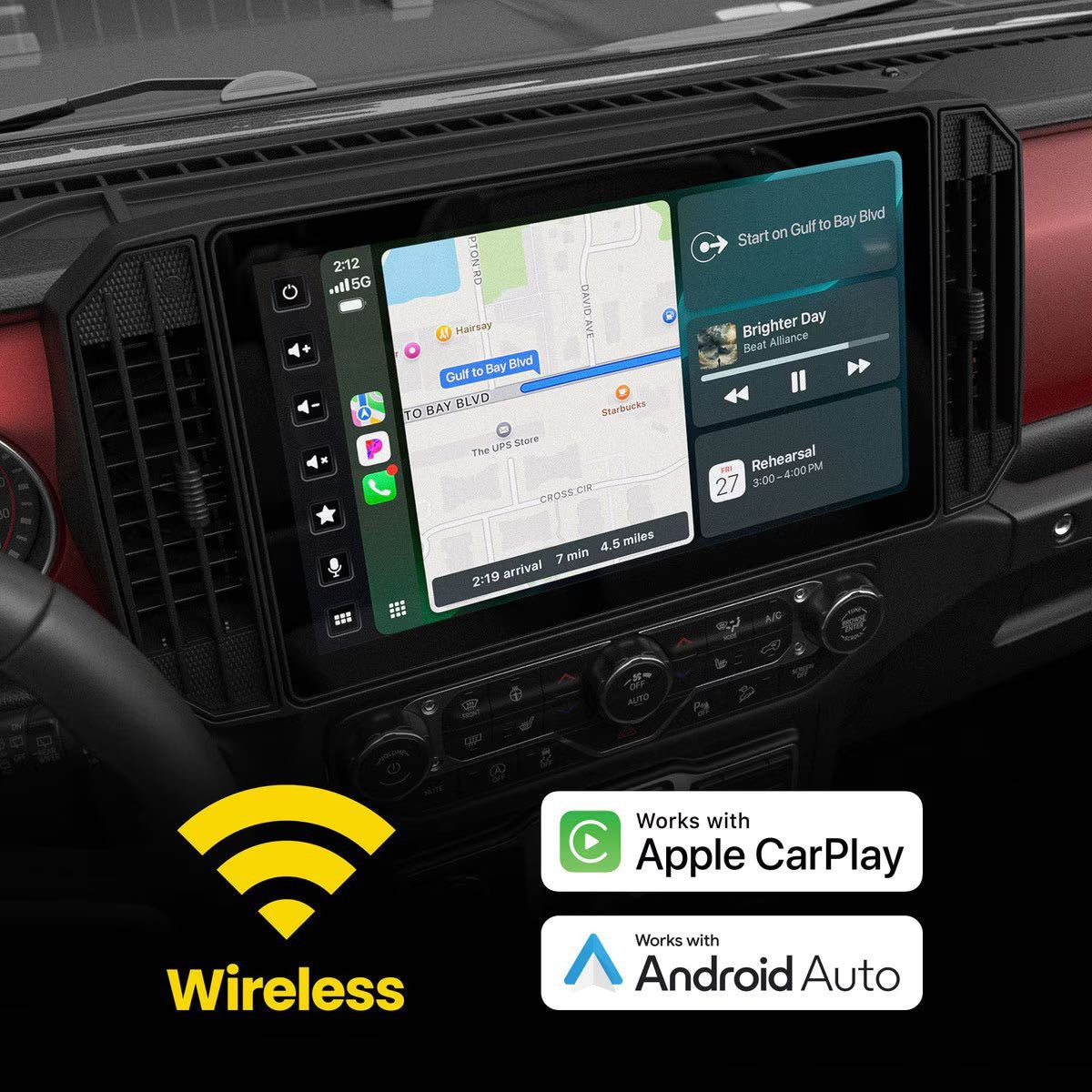

Connectivity	Wireless & wired Apple CarPlay and Android Auto; Bluetooth 5.1 (hands-free, streaming); HDMI input; 3x USB ports (2x USB-A 1.5A, 1x USB-C 3A); microSD slot
Cameras & Safety	Supports up to 4 camera inputs; selectable camera modes for blind spot/trailer/rear view; rear camera audio input supported
Vehicle Compatibility & Integration	Vehicle-specific application for Jeep Wrangler JL and Gladiator JT; retains steering wheel controls, warning chimes and factory amplifier where equipped

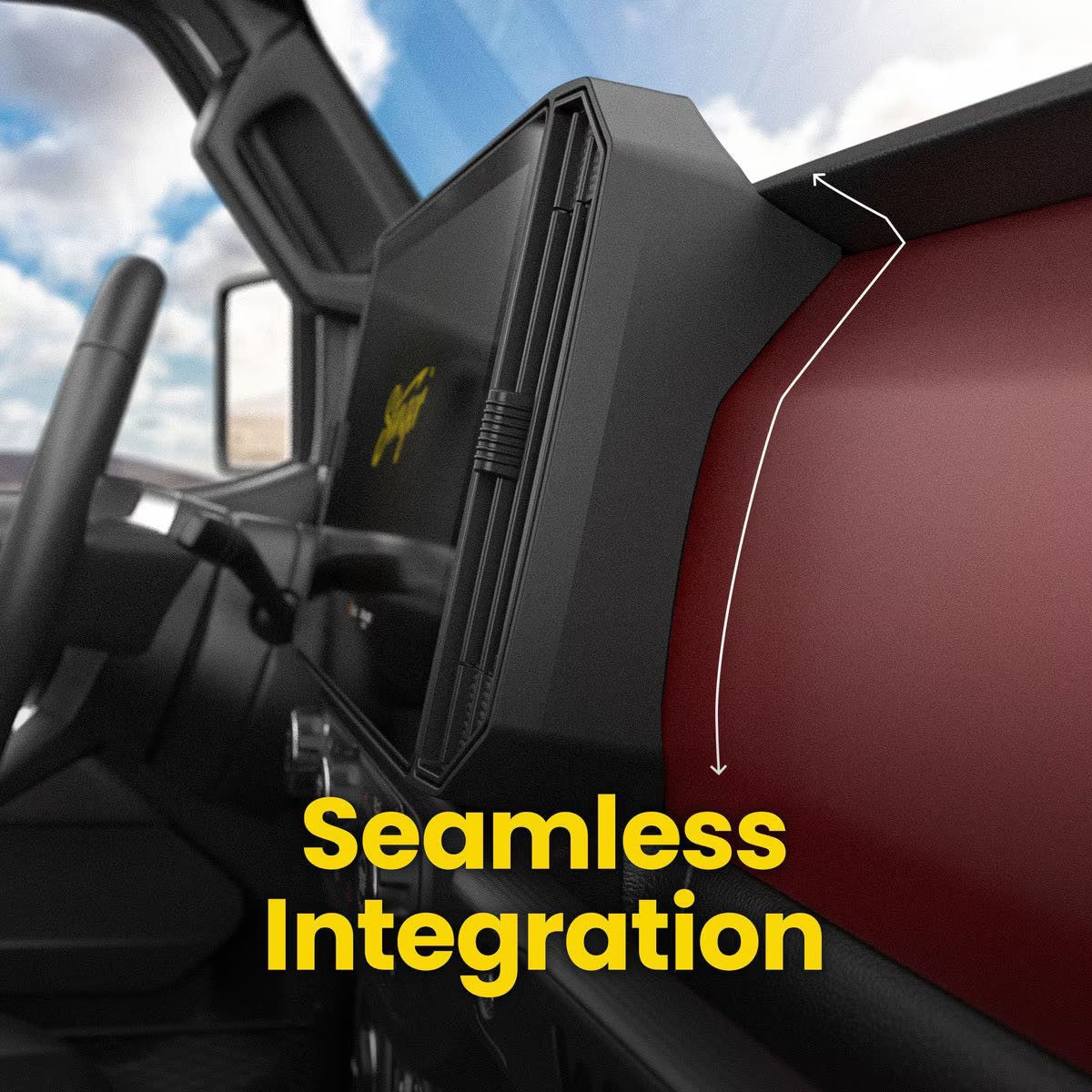

Installation & Kit Contents	Complete plug-and-play dash kit: factory-matched radio mounting panels, CH1A-SRK RadioPRO harness, complete installation harnesses, dash-mount USB and HDMI cable, adapters for satellite/AM-FM and factory USB retention
